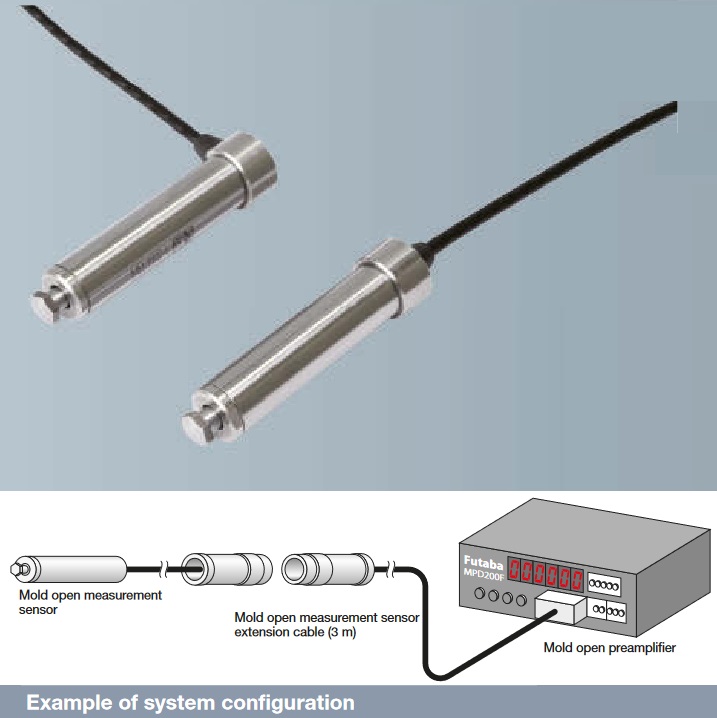

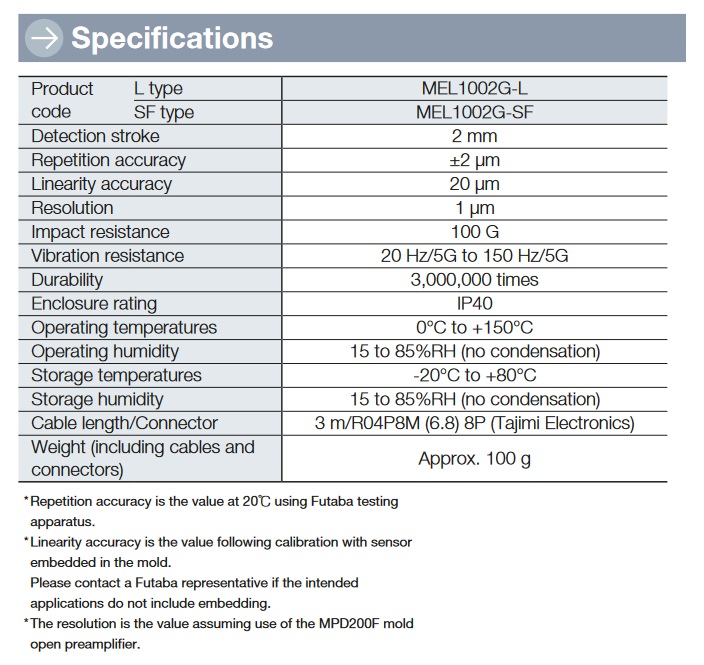

■Allows micron order measurement of mold separation at
the parting line.

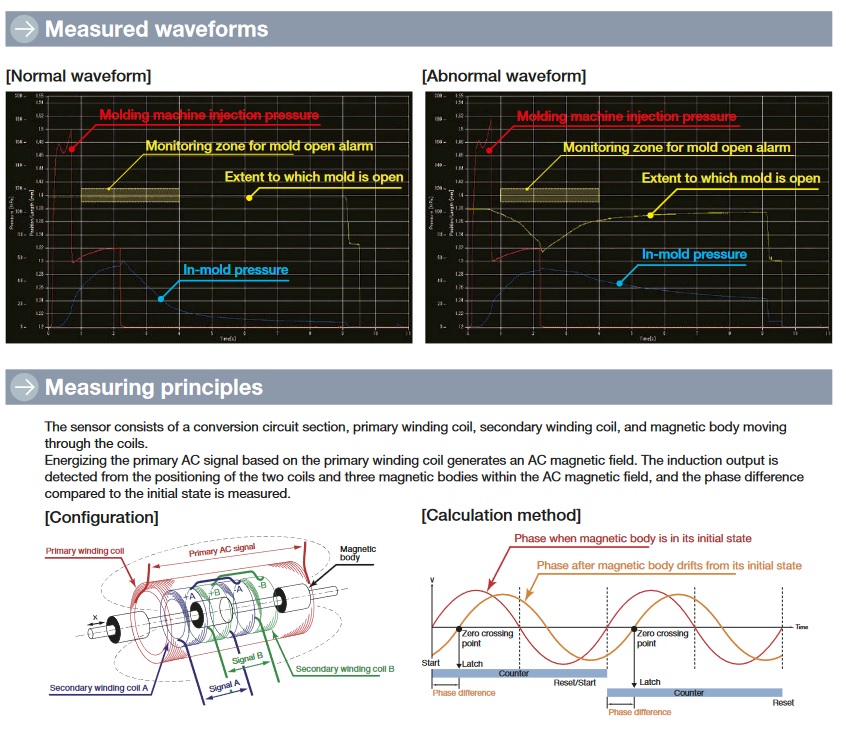

■Magnetic induction allows remarkably accurate
measurements, even at high temperatures.

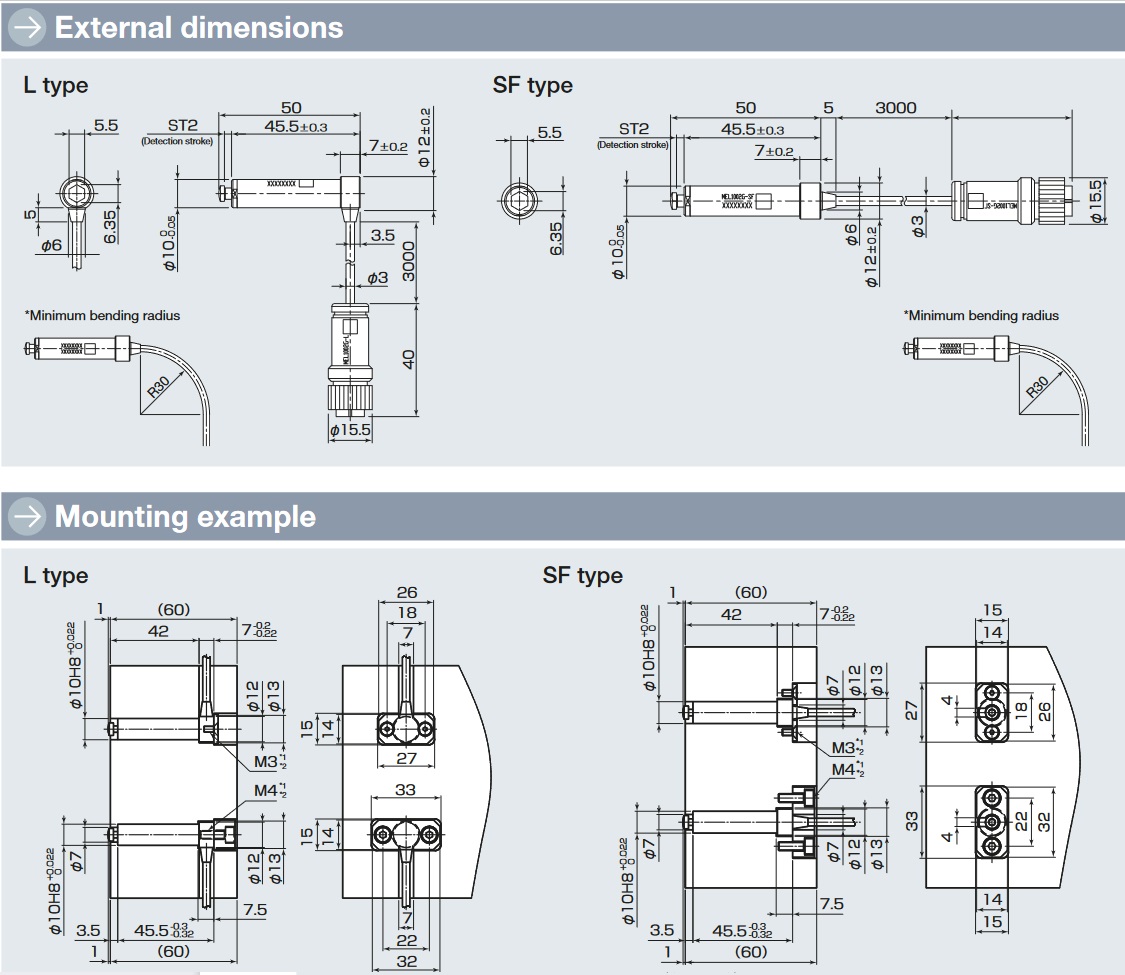

■Suitable for embedding in the molds of injection molding
machines, presses, etc.
Benefits
By attaching our position sensor to the mold, the totalRequired mold tightening force obtained from the calculated value (projected area x cavityBy quantifying the change point where burrs occur with respect to the internal pressure)Wear.In other words, it has a positive effect on the mold and is also good for venting gas.It becomes possible to derive a convenient and appropriate mold clamping force.It is often said that the mold breathes, but in the relevant partBy arranging MEL, gold due to injection pressureThe amount of deflection inside the mold can be quantified, and the estimated value and actual value at the time of designYou can compare the measured values.Also, make a new moldWhen placing it on a mold and making a trial shot, a digital device is attached to the outside of the mold.There is work to attach the cage and watch the movement of the mold, but this is the caseBy installing the company's sensor, it has a display function at handYou can easily check the numerical value with the converter.
