Detail
■Infrared detection using optical fiber
■High-speed response: 8 ms (for 63.2% response)

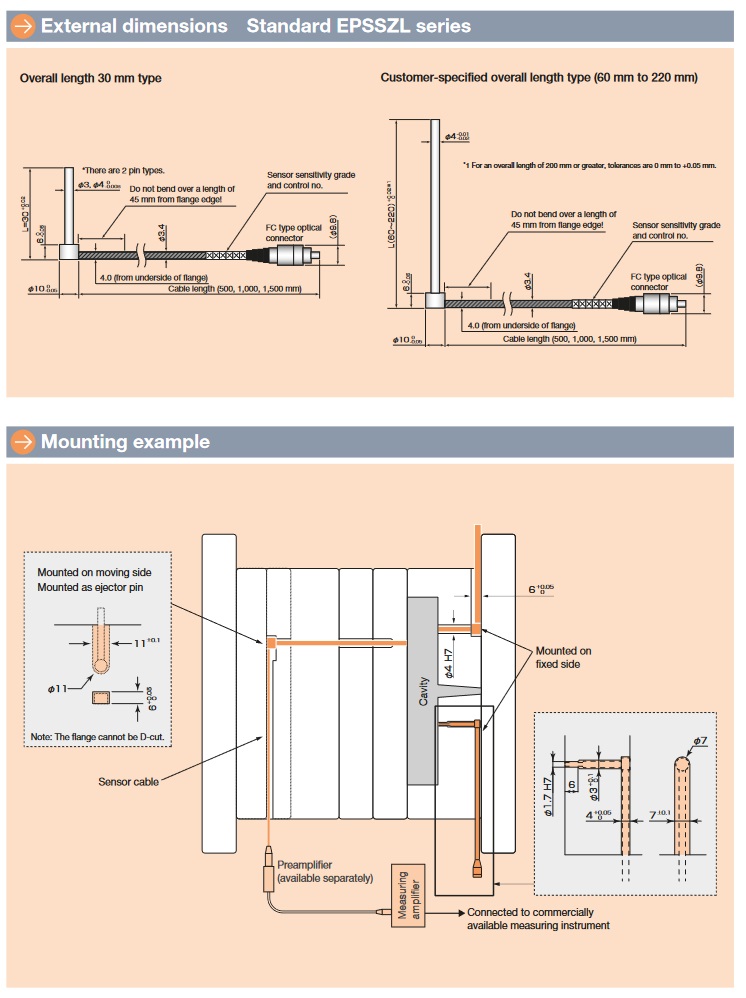

■Ejector pin configuration allows easy installation on mold.*
■ Capable of measuring resin temperatures from 60°C to 430°C
*1 Machining such as flange cutting to prevent rotation is not possible.
