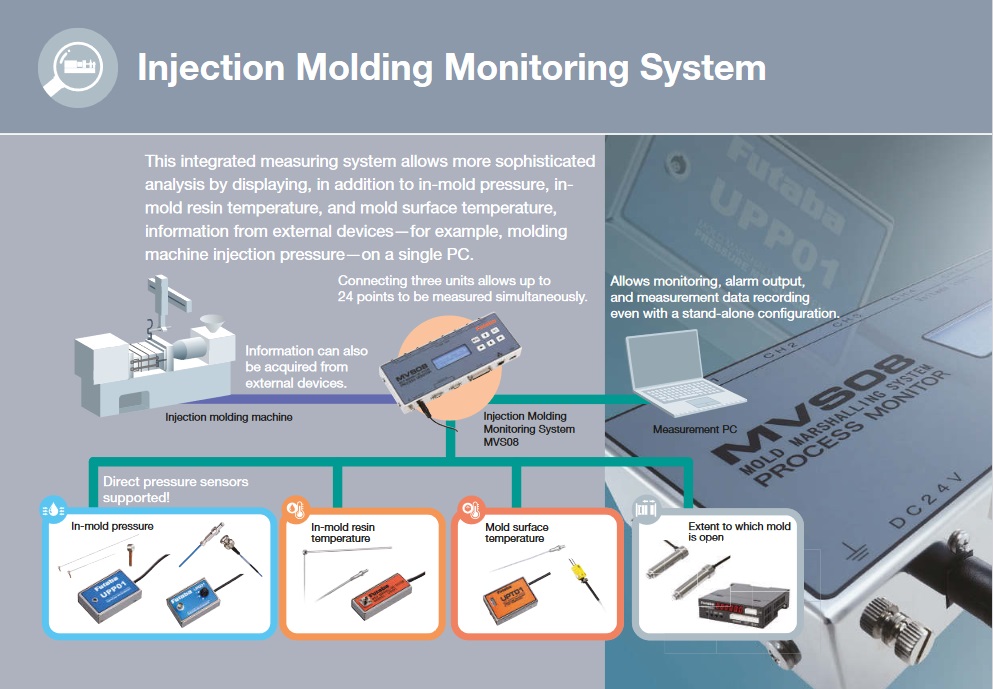

■Allows acquisition of information from external devices
as analog voltages in addition to in-mold pressure,
in-mold resin temperature, and mold surface temperature.

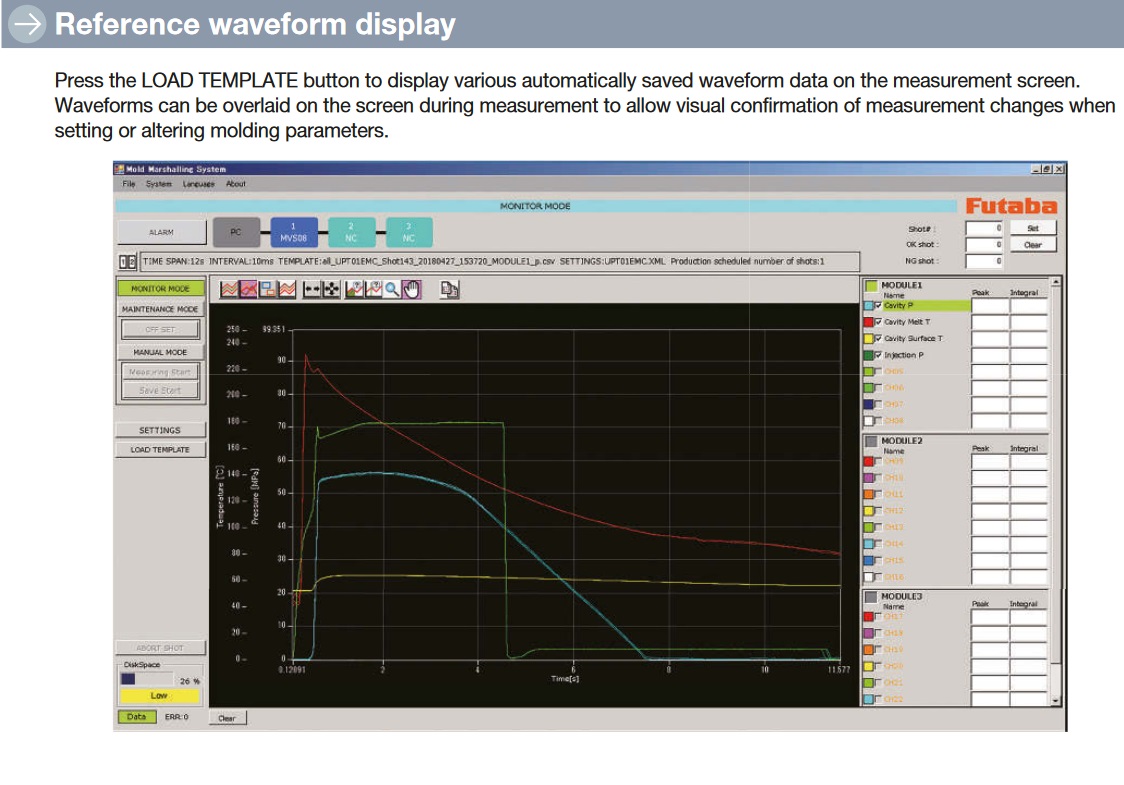

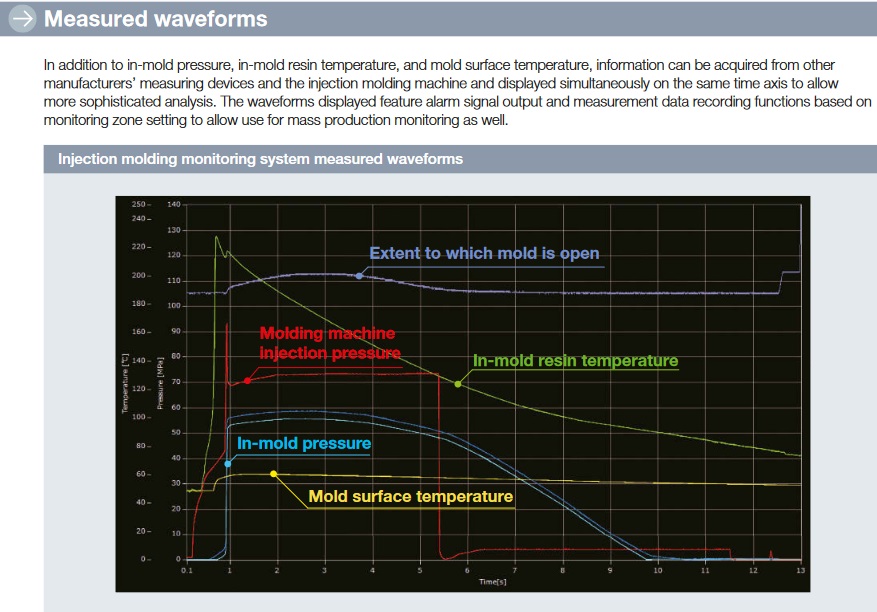

■Includes dedicated measurement software to easily display
data on a combined time axis.

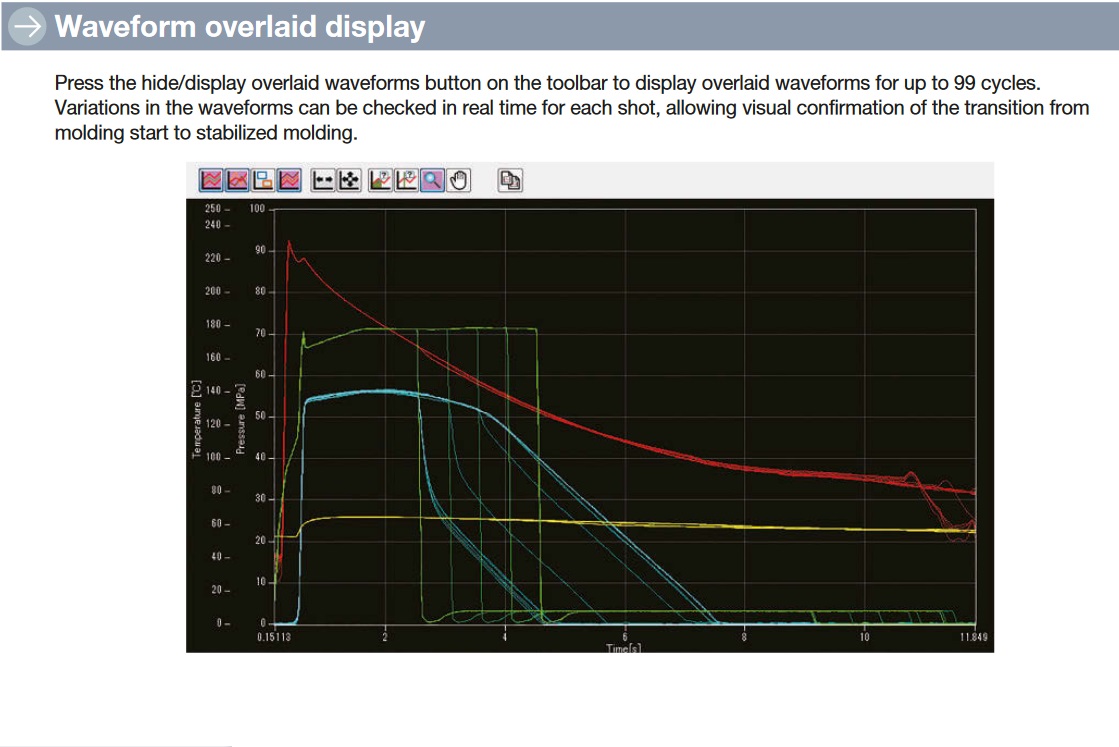

■Includes functions for overlaid display, alarm monitoring zone setting,
and control signal output.

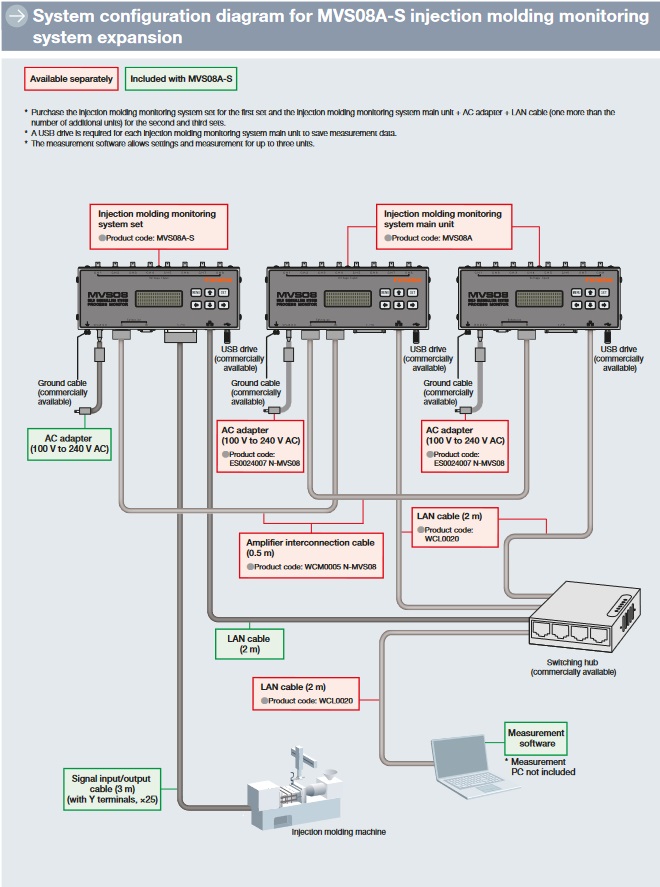

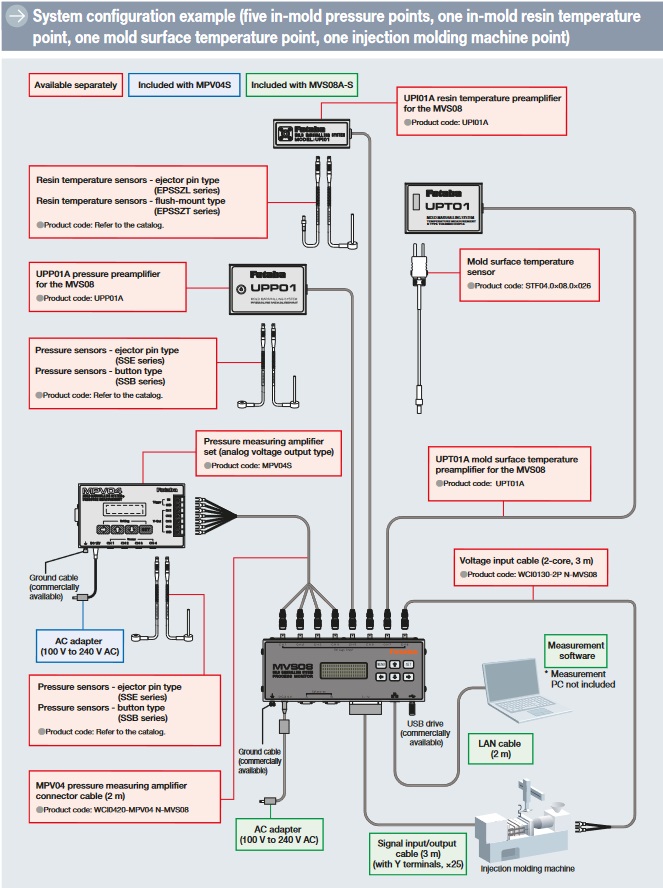

■Three units can be connected together for simultaneous measurement of up to 24 channels.
■Allows monitoring, alarm output, and data recording even with a stand-alone configuration.
■The measurement software supports switching between displaying Japanese, English, Chinese, and Korean.
■Compatible sensors

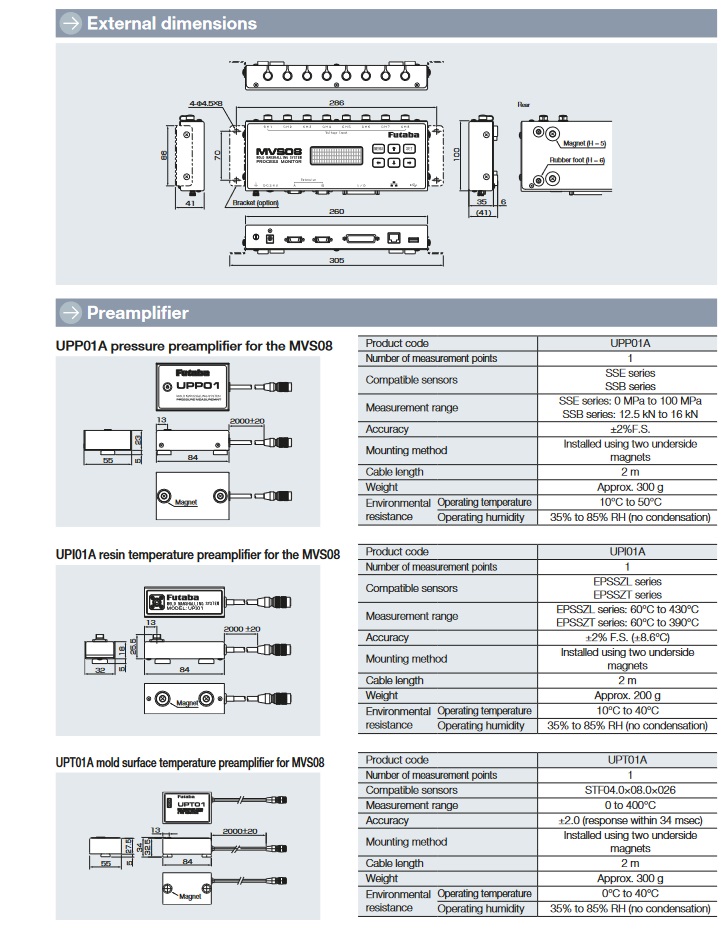

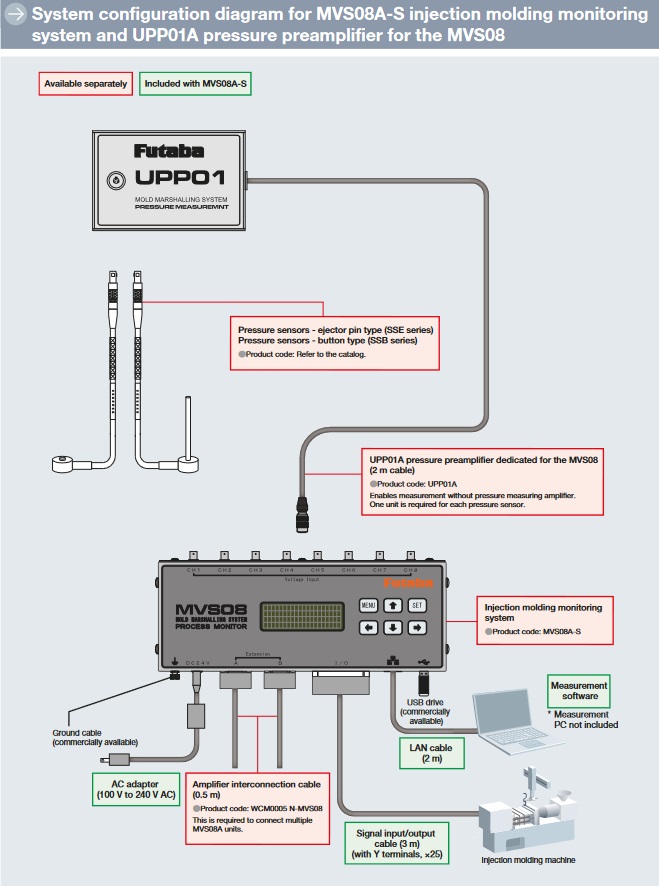

Resin pressure: SSB series, SSE series (preamplifier sold separately)

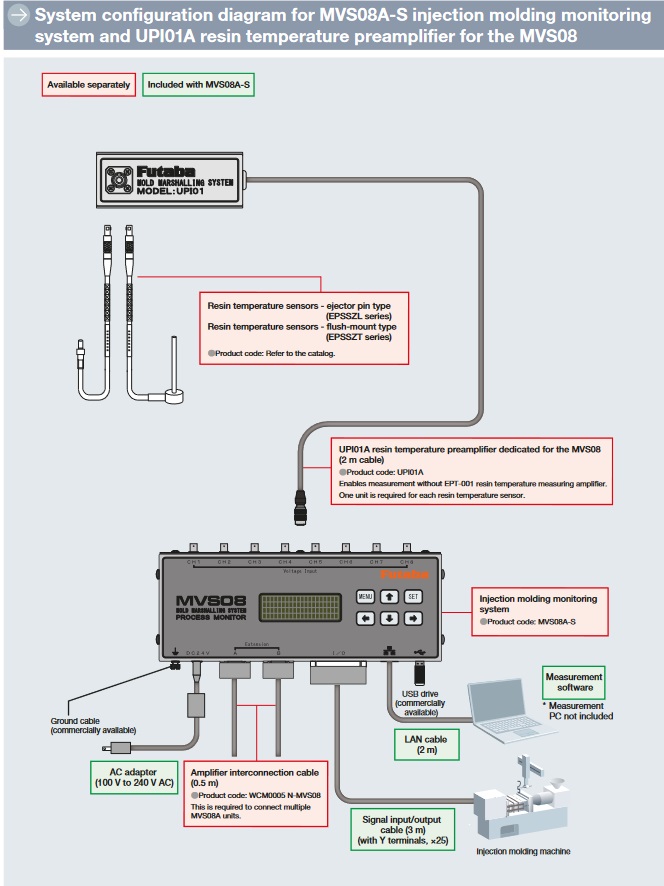

Resin temperature: EPSSZL series, EPSSZT series (preamplifier sold separately)
Mold surface temperature: STF series (requires commercially available signal converter)
Other: Measuring devices with output between 0 V and 10 V
